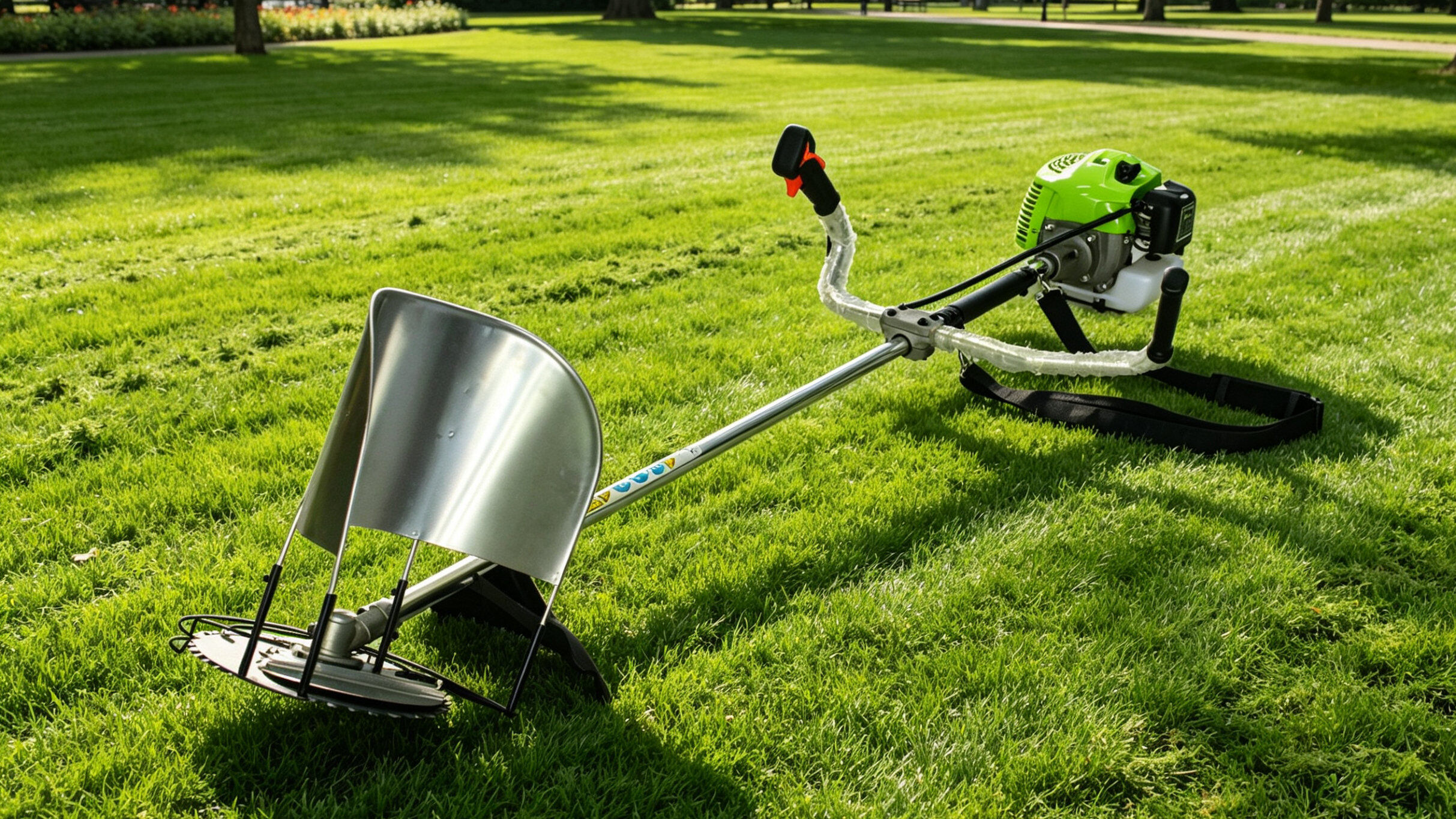

JK-H520 Powerful Rice Wheat Harvester 52CC

Model: JK-H520

JK-H520 Powerful Rice Wheat Harvester 52CC

JK-H520 is a brushcutter for professional users cutting or trimming long stretches of Rice Wheat heavy grass or other vegetation. Its combination of power, performance and comfort means high productivity and low user strain. Simplified starting procedure: just purge, push the start button and pull the cord. Powerful engine with 52CC high fuel efficiency and reduced exhaust emission levels. Balance harness, adjustable handles and efficient vibration dampening help maximise productivity and comfort even for the longest, toughest jobs.

Key Features

Optimised shaft length and 35 degrees bevel gear facilitates operation and allows the cutting equipment working parallel to the ground
Adjustable and ergonomically designed handlebar for best comfort
52CC engines deliver great power and torque thanks to highly efficient combustion
Fuel pump designed for easy starting
When the machine is turned off the stop button automatically returns to the start position for trouble free starting
Angled handle bar and comfort handles provides excellent grip and working position.

Applications

•Wheat rice harvesting and tree pruning
• Lawn trimming
• Weed clearing
• Garden maintenance

Inquire Now

Technical Specifications

Engine	1E44F-5 2 Stroke air cooling
Power Source	Petrol / Gas
Displacement	51.7CC
Max Power	1.85KW
Cutting Speed	8500rpm
Idle Speed	3000±200rpm
Fuel Tank Capacity	1.2L
Fuel/oil mixture ratio	25:1
Drive Shaft Diameter	28mm
Drive Shaft	9t
Handle Type	Bicycle Handle
Blade Type	255mm(metal blade) 420mm(nylon cutter)
G.W/N.W	9.5/8.5KGS
Packing Size	330X300X230mm(Engine) 1650X110X110mm(Operation Tube)
Standard Accessories	1. 2T blade 2. Nylon Trimmer Head 3. 40T saw blade 4. Belt 5. Debris Guard 6. Tool kits 7. Manual
Cylinder Bore	40mm
Ignition System	C.D.I.
Transport Package	Standard Carton Box
